1/4 H-Bridge Board
1/4 H-Bridge Board
1/4 H-Bridge Board
1/4 H-Bridge Board

1/4 H-Bridge xCh v1 – One set of two PCBs – 12 Units – Backorder Price

Original price was: 179,40 €.Current price is: 104,95 €. inc. VAT

Build a half-bridge, or with two sets, a full bridge MOSFET electric motor controller. – Or drive a loudspeaker. Repurpose it with easy for a Totem-Pole, alias Push-Pull stage. Also very convenient for driving loudspeakers with power transistors like TIP31/TIP32 etc. xCh: Can be used for P-Channel and N-Channel MOSFETs, next to power transistors.. Hard-driving […]

Available on back-order

SKU: 1-4-h-brgd-v1-12
Category:

Description

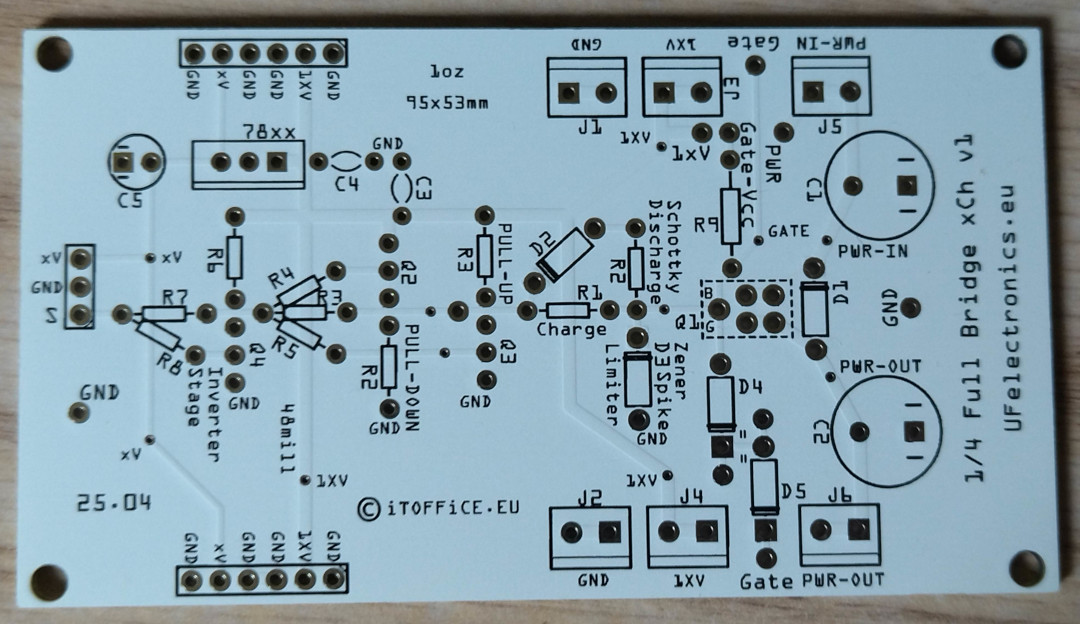

Build a half-bridge, or with two sets, a full bridge MOSFET electric motor controller. – Or drive a loudspeaker.

Repurpose it with easy for a Totem-Pole, alias Push-Pull stage. Also very convenient for driving loudspeakers with power transistors like TIP31/TIP32 etc.

xCh: Can be used for P-Channel and N-Channel MOSFETs, next to power transistors..

Hard-driving of MOSFETs is possible by dual-powering the PCB with 10-20 V, additionally to the signal control voltage. Tracing and transistor pads already at hand on the PCB.

Pull-up / Pull-Down by default is possible.

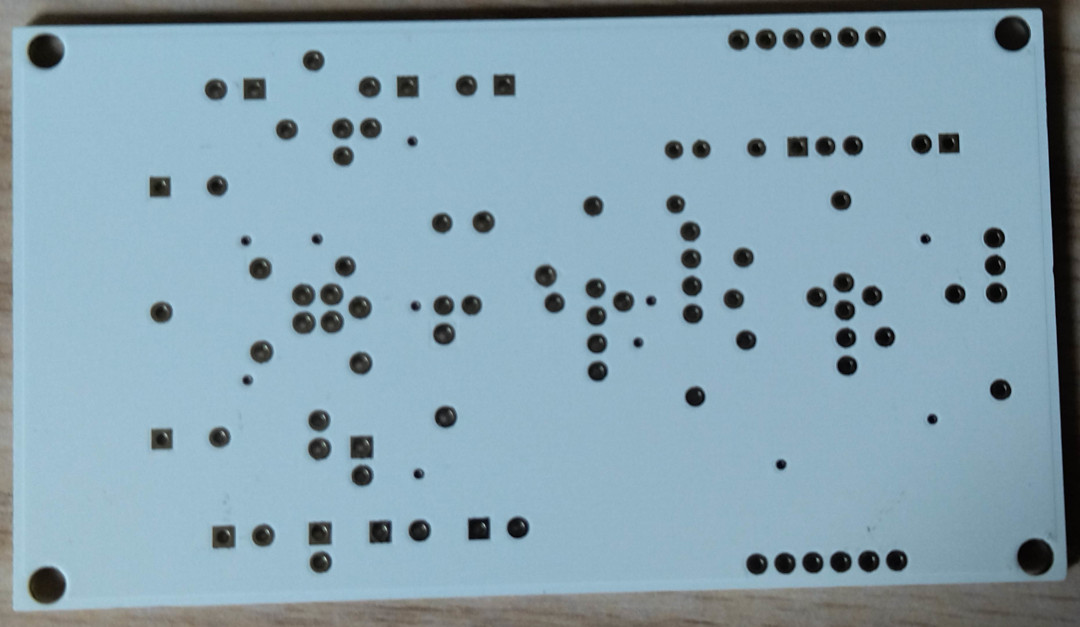

Set of two PCBs.

PCBs nonly – No components.

Additional information

Dimensions 5,3 × 9,5 × 0,16 cm
