555-Timer Board v2
555-Timer Board v2 - Image 2
555-Timer Board v2 - Image 3

555-Timer Board v2

7,95 € inc. VAT

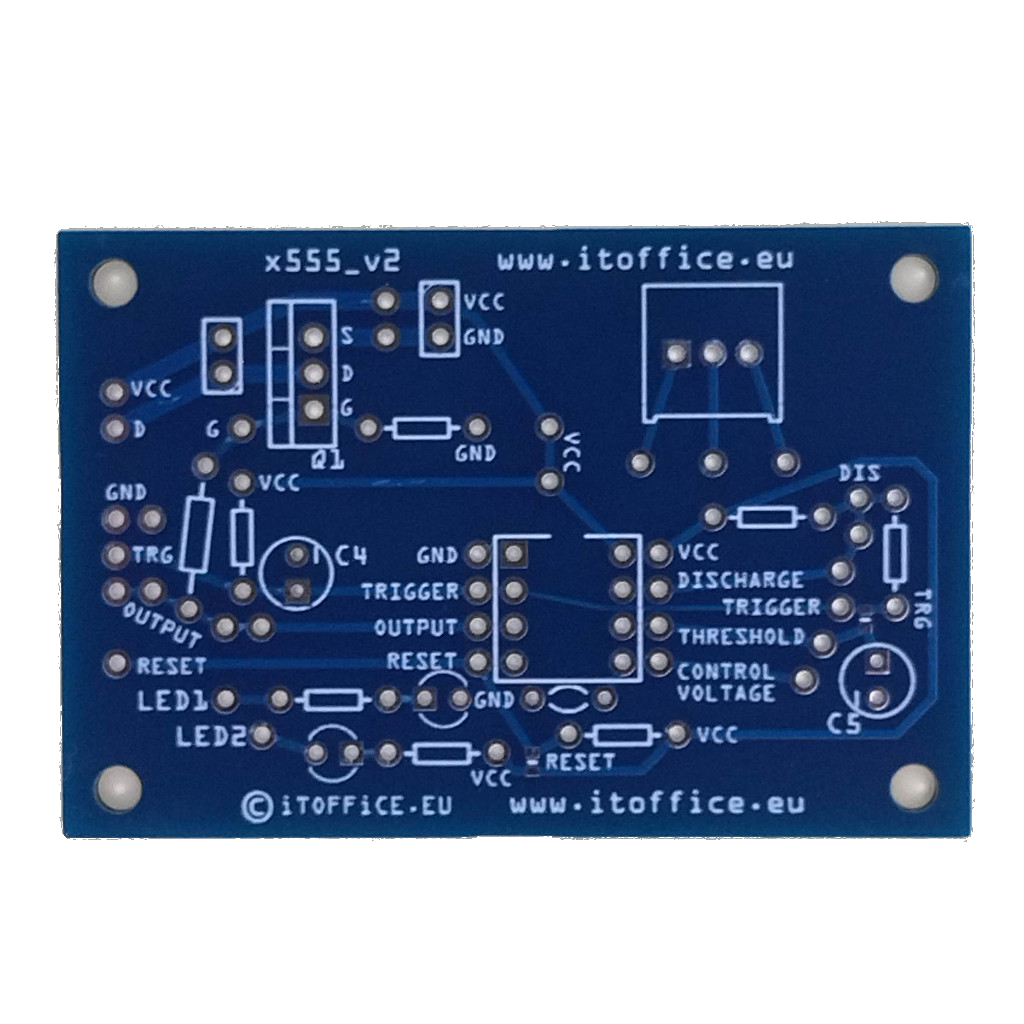

Features Footprint for a N-type MOSFET. Footprint for two LEDs with corresponding resistor; one to +Vcc and one to ground. Footprint for a variable resistor. Backside Ground Plane: For less noise emissions and optimal signal strength. Create any circuit based on the 555-timer with this board. The standard layout makes it easy to try out […]

1 in stock

SKU: 555_v2
Category:

Description

Features

  • Footprint for a N-type MOSFET.
  • Footprint for two LEDs with corresponding resistor; one to +Vcc and one to ground.
  • Footprint for a variable resistor.

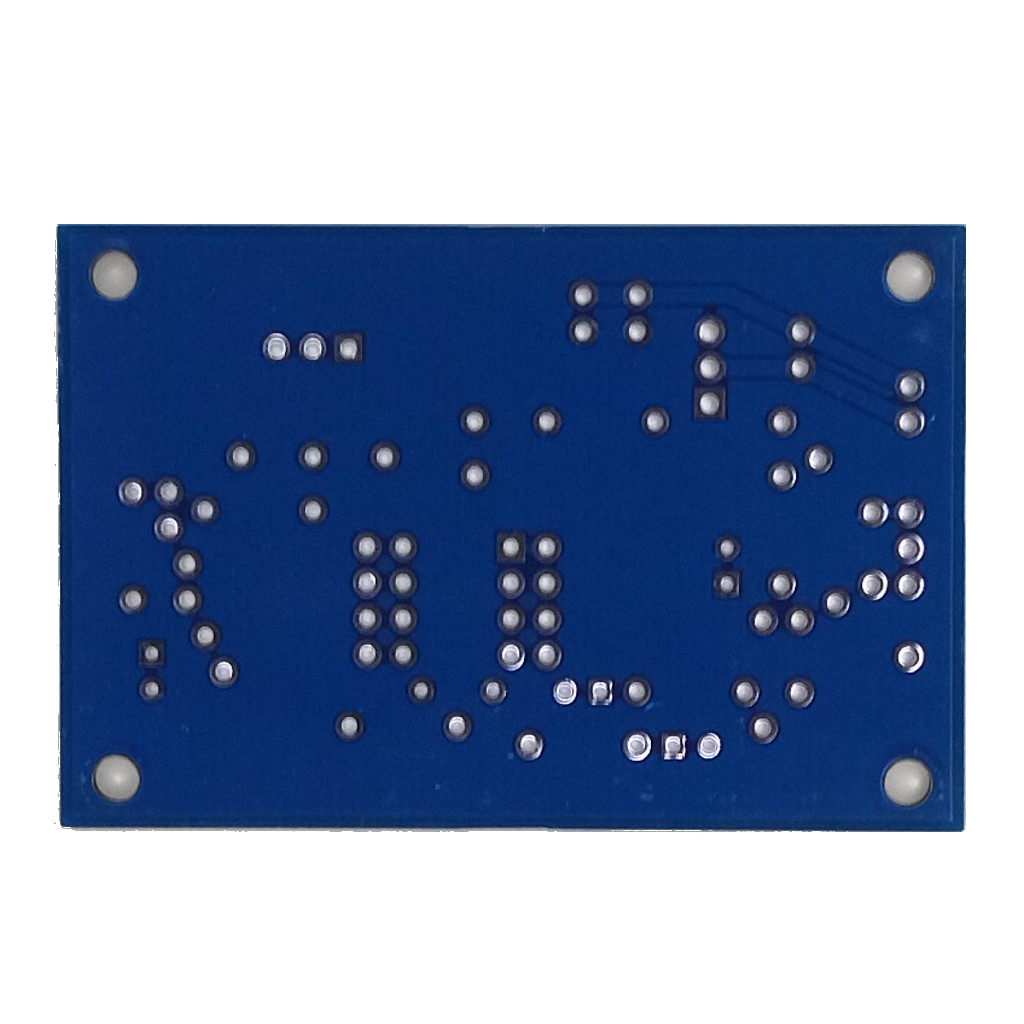

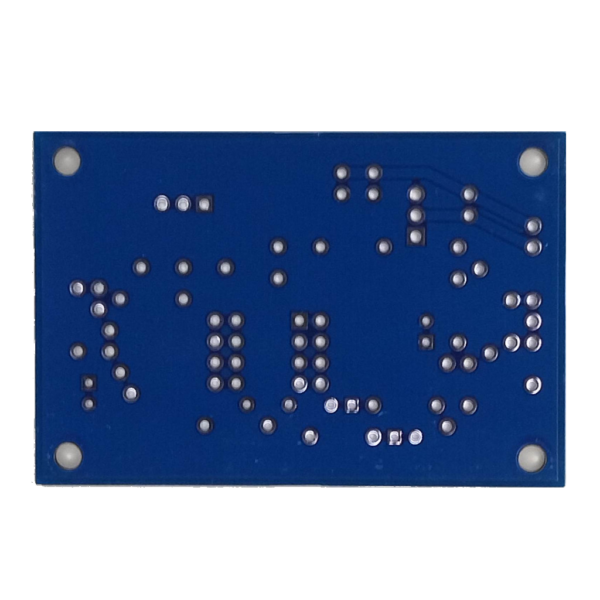

  • Backside Ground Plane: For less noise emissions and optimal signal strength.

Create any circuit based on the 555-timer with this board. The standard layout makes it easy to try out various different applications of the 555-timer.



PDF with Description

Under development.



Suggestions?

Do you have suggestions for improvements, or in need of a personalized PCB design, please write us.
