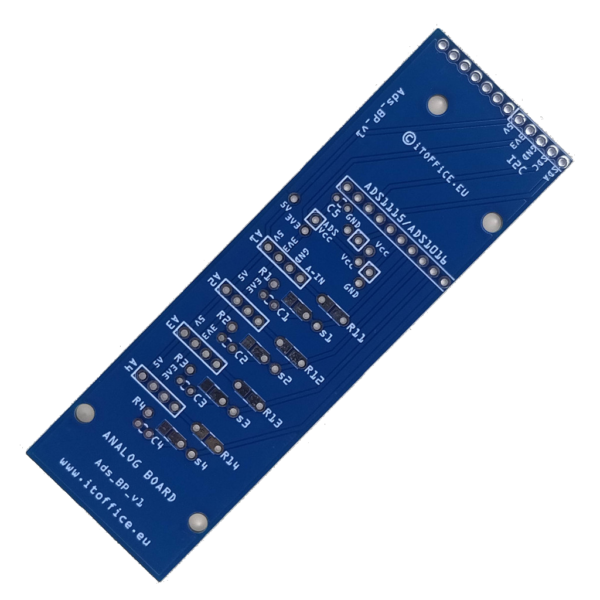

Analog Board - X2-Series - Ads_BP_v1

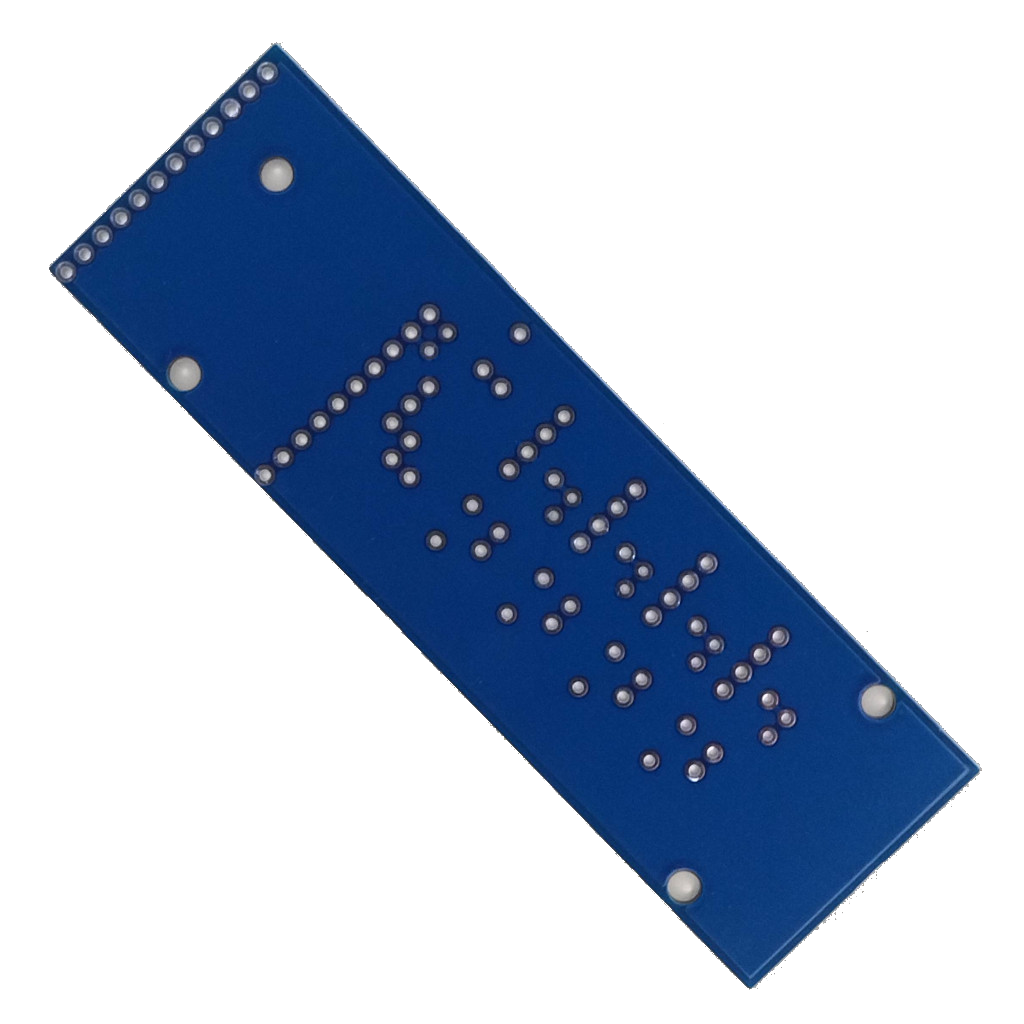

Analog Board - X2-Series - Ads_BP_v1 - Image 2

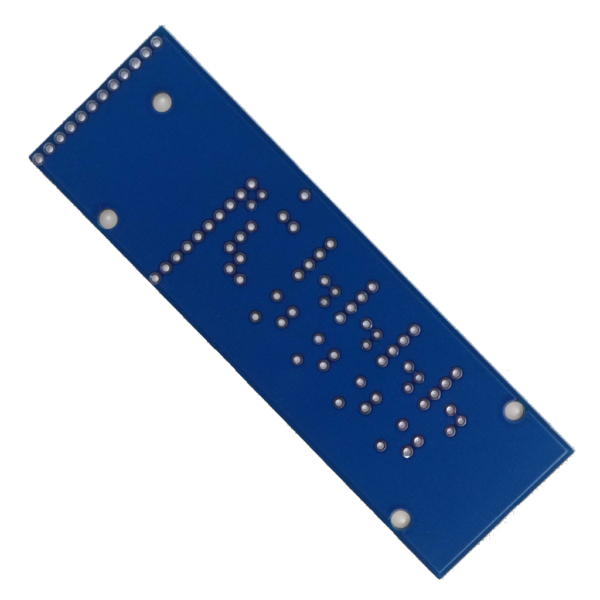

Analog Board - X2-Series - Ads_BP_v1 - Image 3

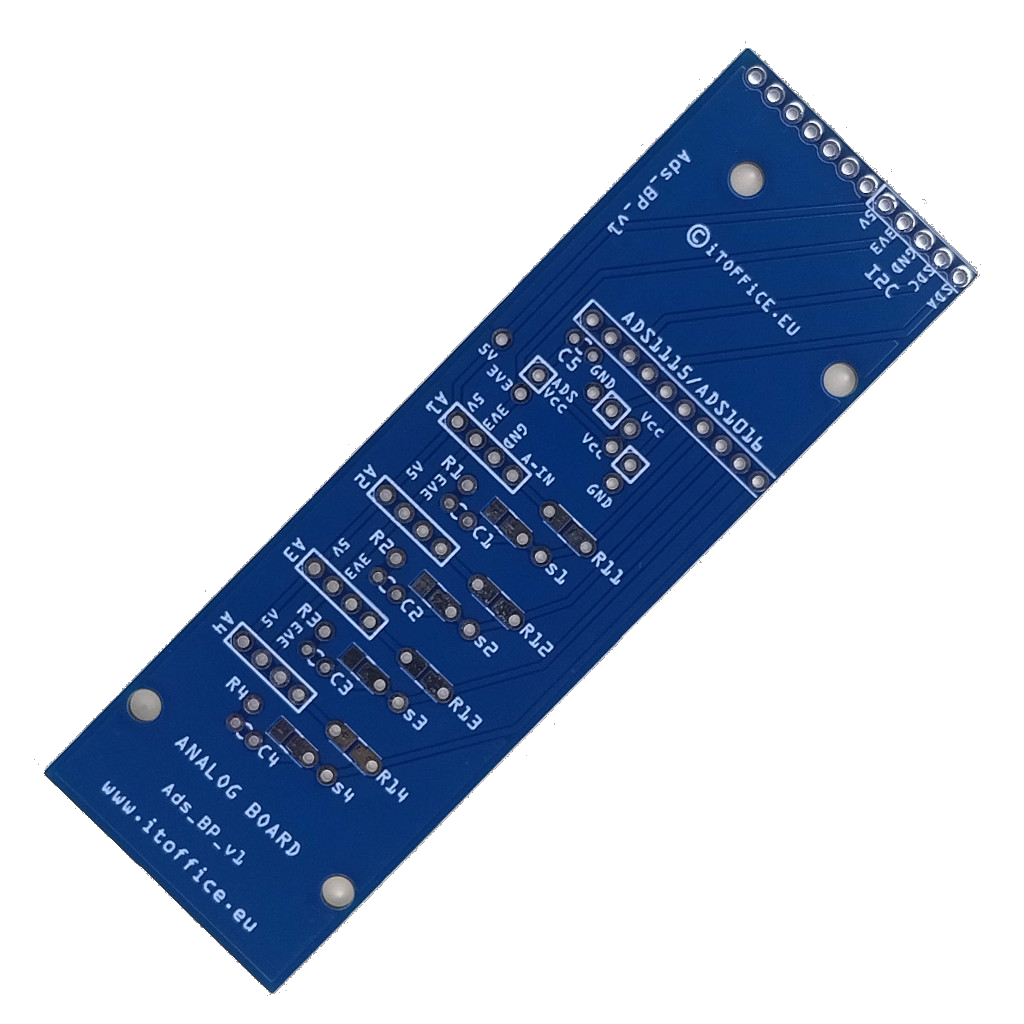

Analog Board - X2-Series - Ads_BP_v1 - Image 4
Analog Board - X2-Series - Ads_BP_v1 - Image 5

Analog Board – X2-Series – Ads_BP_v1

4,95 € inc. VAT

Attaches an ADS1115/ADS1110 analogue to digital converter to I2C Pinout fits to the Extension Board. or the Backplane Board from the X2-Series. Intended for any MCU/microcontroller capable of communicating via I2C with a ADS1115/ADS1110. The ADS1115 can be mounted in parallel to the board itself, in a 90 degree ankle to the pin holes. This […]

Available on back-order

SKU: ads_bp_v1
Category: ,

Description

Attaches an ADS1115/ADS1110 analogue to digital converter to I2C

Pinout fits to the Extension Board. or the Backplane Board from the X2-Series.

Intended for any MCU/microcontroller capable of communicating via I2C with a ADS1115/ADS1110.

The ADS1115 can be mounted in parallel to the board itself, in a 90 degree ankle to the pin holes. This reduces the height of the final unit.

Physical description of the product

A PCB with at least the functionality described.
