Sensor Adapter Switchboard SAS_v2

Description

PCB only without further components.

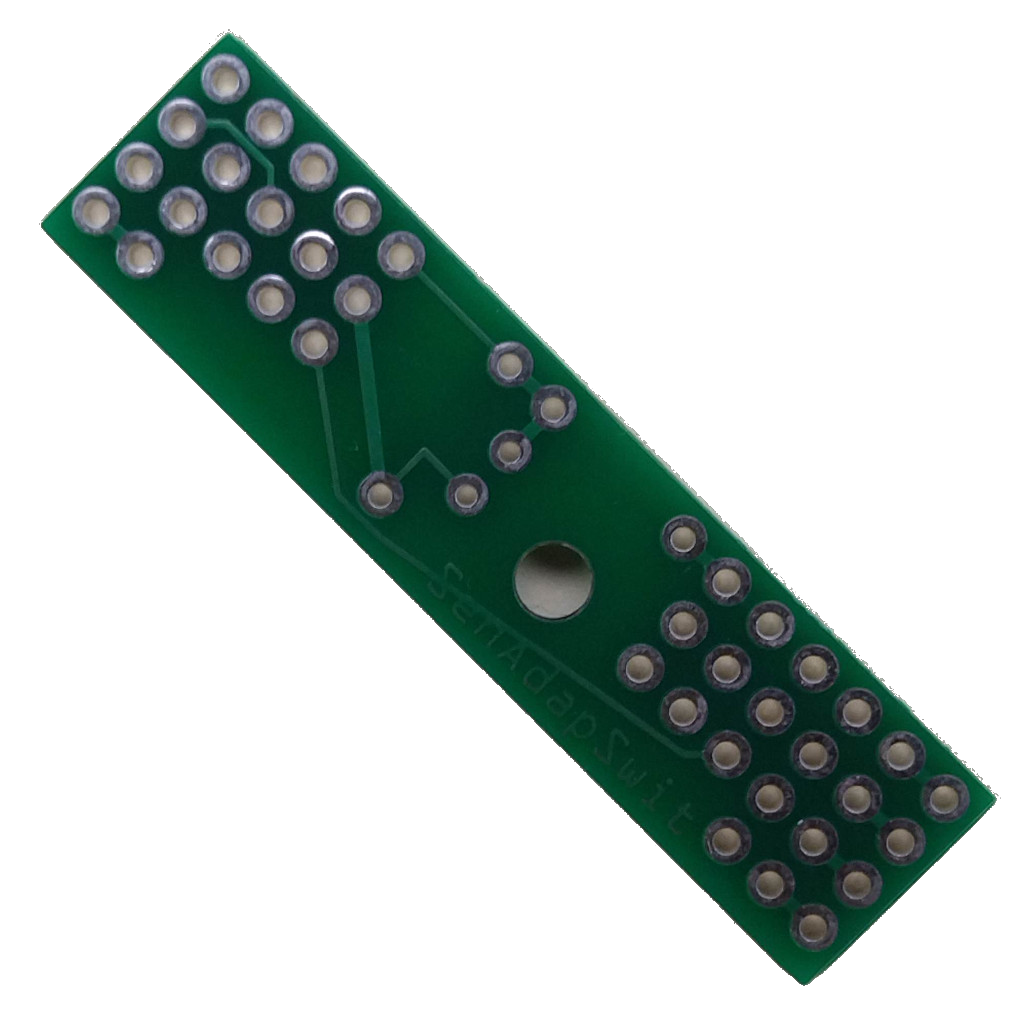

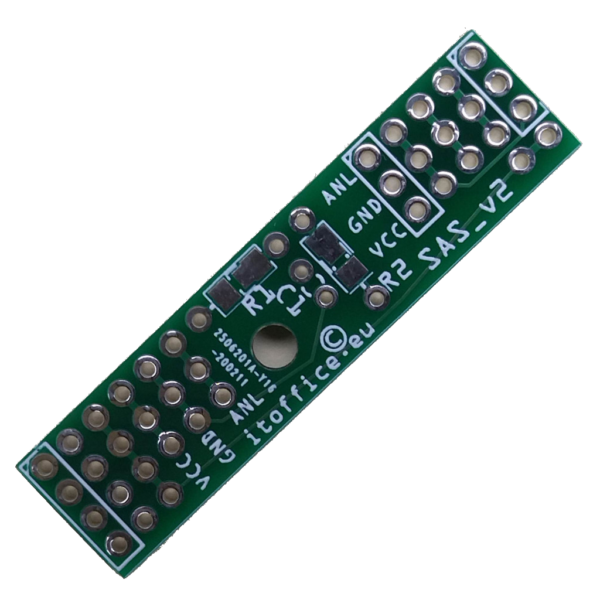

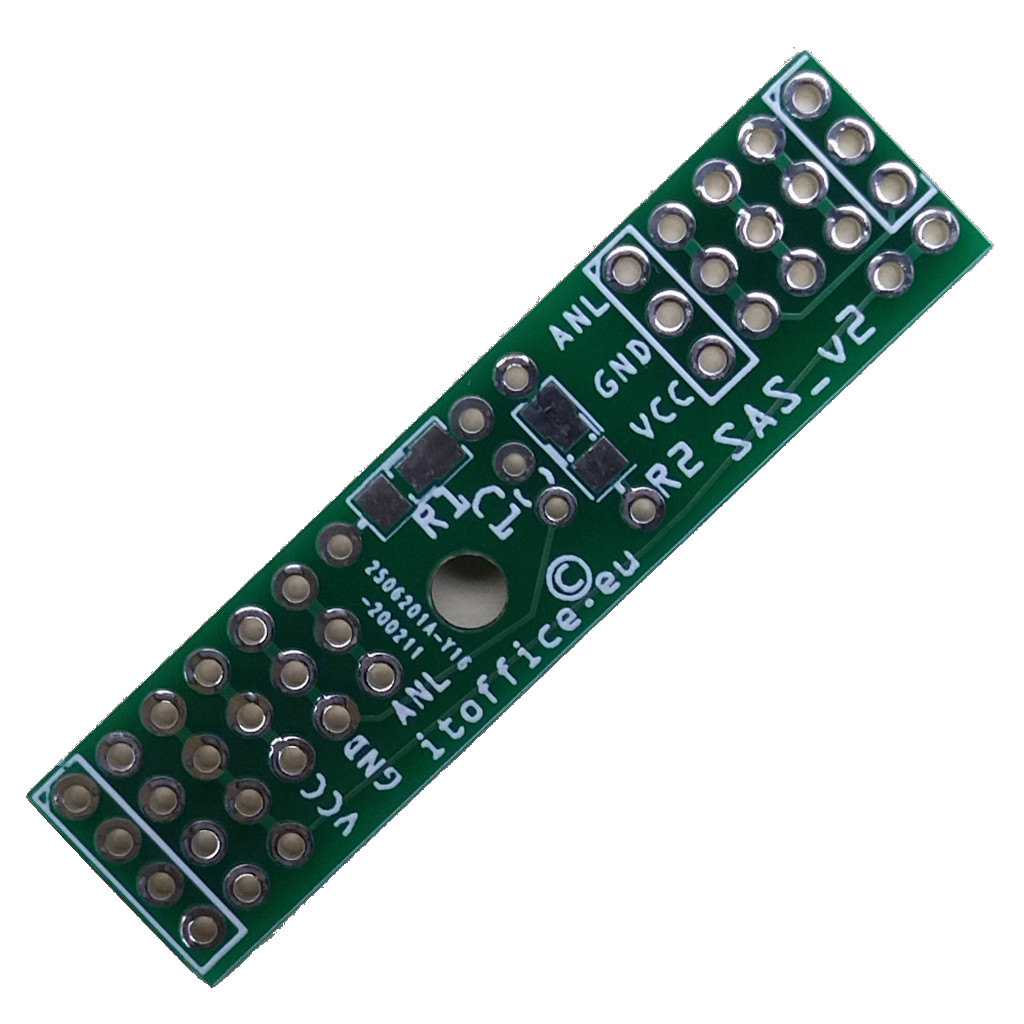

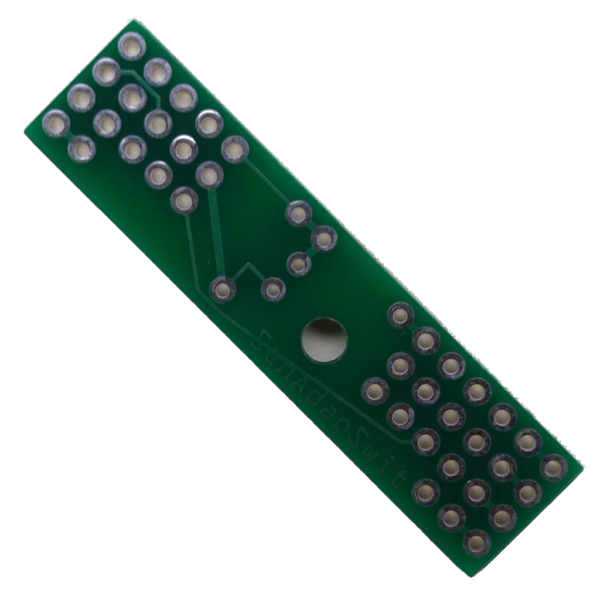

This is a board to give your sensor a fixture with mounting hole.

The board has a small switchboard sensor side (left) and controller side (right), which gives you the possibility to change the pin order fixed to the sensor

In the middle has it space for a voltage divider (two resistors) and a capacitor.

You can use THT and SMD (1206/0804) components.

It also gives you a mounting hole of 3.4 and one of 2.5 mm (Raspberry Pi size).

Size: 55 x 12 x 1.6 mm
