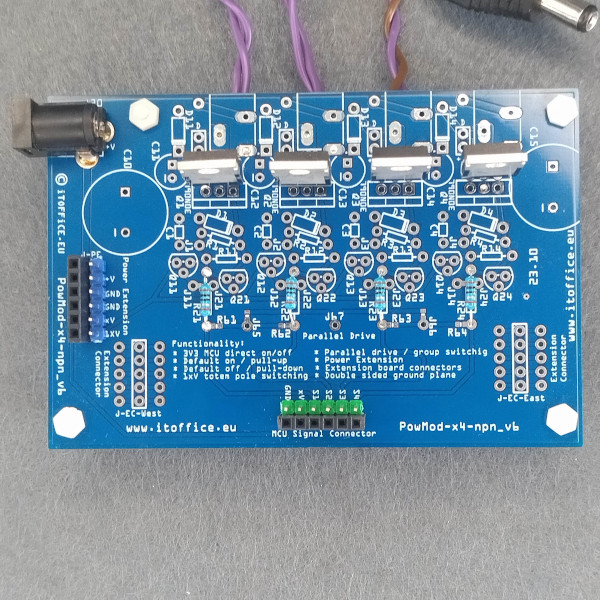

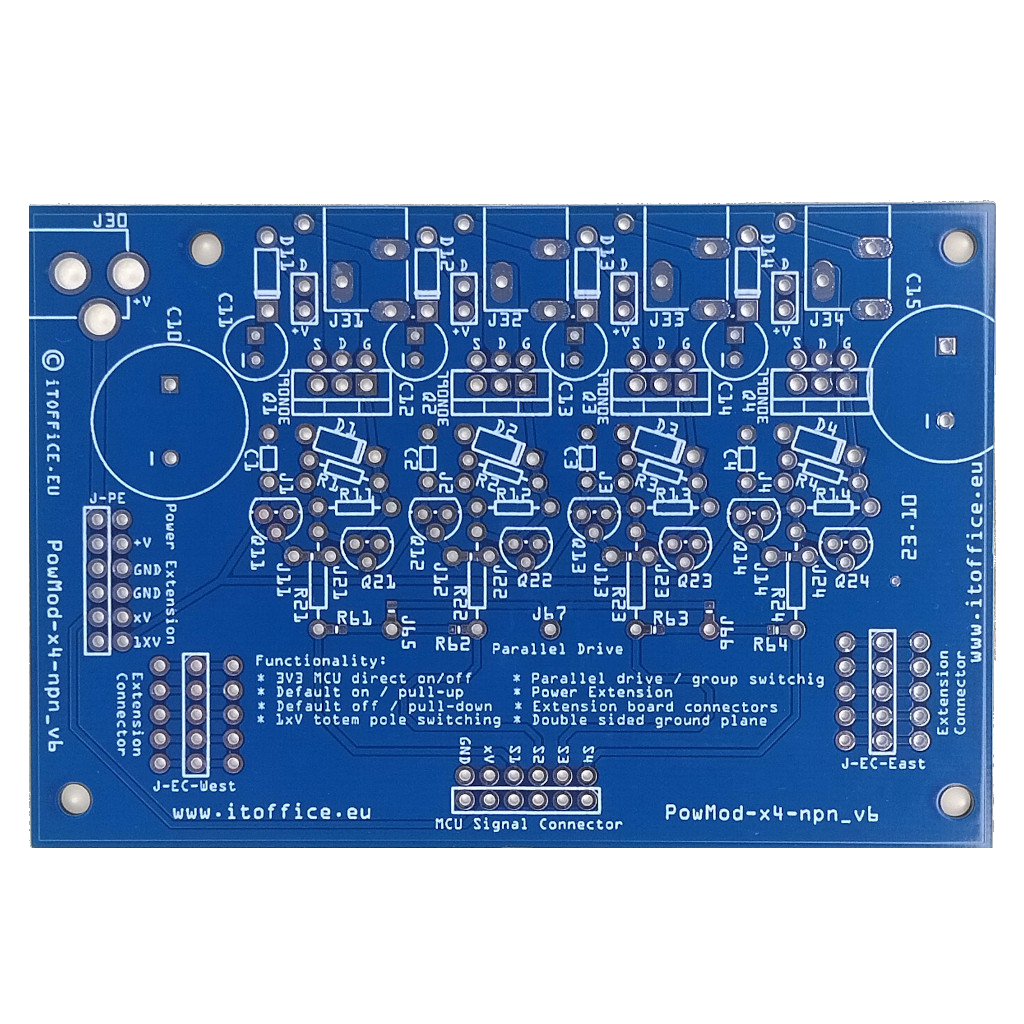

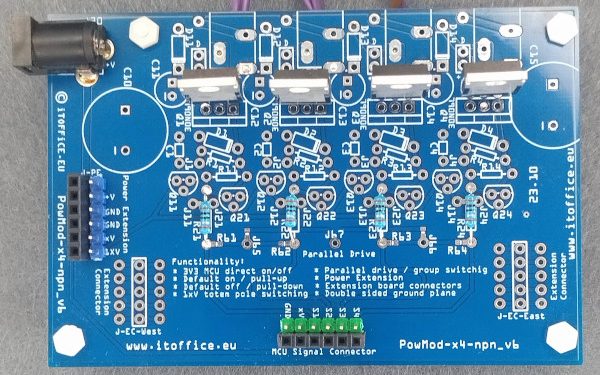

Power Module x4 Board v6

Description

Features

• Up to 4 N-Type MOSFETs.
• 3V3 MCU direct on/off: With the right MOSFET, only one resistor is needed for controlling it.
• Default on with pull-up resistor: Hard wire how a high signal shall act.
• Default off with pull-down resistor: Hard wire how a high signal shall act.
• 1x V Totem-Pole Switching: For controlling the MOSFETs with voltage higher than the MCU can deliver.
• Parallel Drive / Group Switching: For paralleling the MOSFETs.
• Optional Power Extension: To back feed power to the MCU with a DC-DC converter.
• Extension Board Connectors: For adding IC controller for the MOSFETs.
• Double Sided Ground Plane: For less noise emissions.

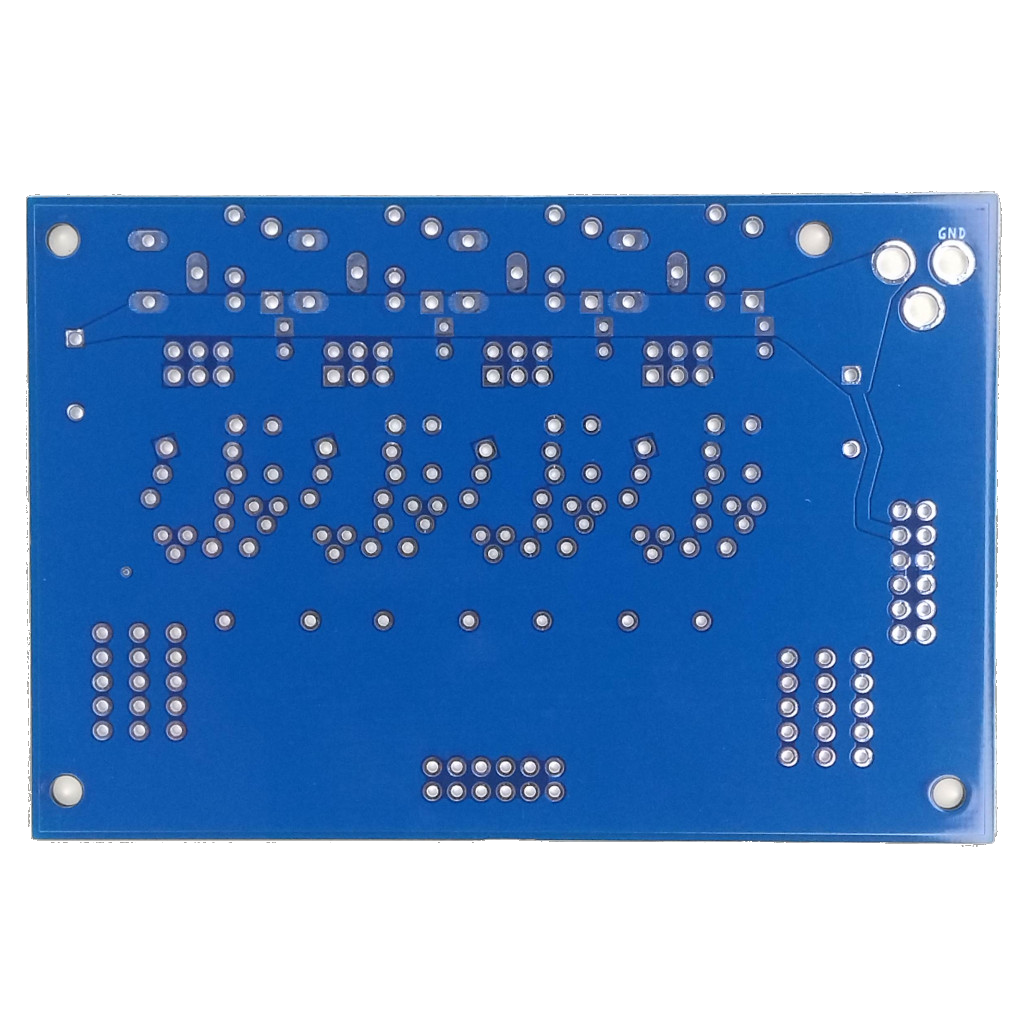

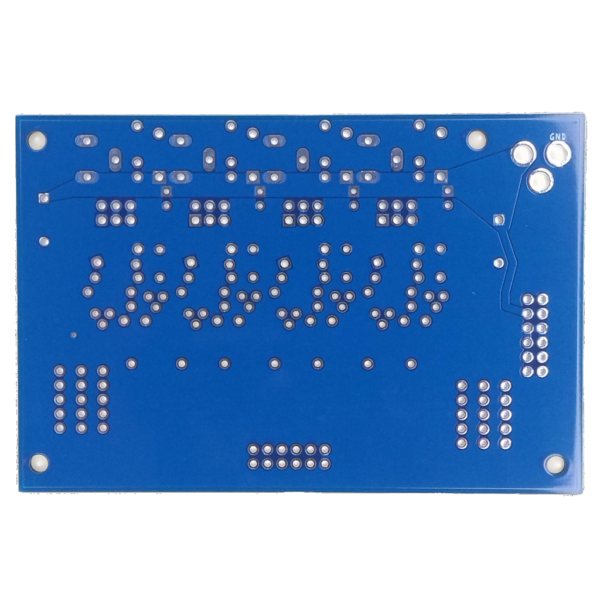

• Backside Ground Plane: For less noise emissions and optimal signal strength.

You can make various standard N-Type MOSFET circuits based on this PCB. It is hence not fixed to be used with one circuit only, and you can add components according to your schematic.

PDF with Description

Description with use cases: PowModX4_Description_Rev-1.pdf
